Introduction to the materials and specifications of geocomposite drainage geonet

Product introduction：Composite drainage network (also known as three-dimensional composite drainage network, tunnel

drainage plate, drainage plate) is composed of a three-dimensional plastic mesh with double-sided bonded

seepage geotextiles, which can replace traditional sand and gravel layers and mainly been used for drainage of

landfills, subgrades and inner walls of tunnels. In railway, highway and other transportation infrastructures,

service life of the project has an inseparable relationship with its own drainage system and geosynthetics are

an important part of the drainage system.

Product specification: geonet thickness 3-8mm, width 2-6m,the length is depend on project design.

3D composite drainage network
item	unit	TC63/D200	TC70/D200	TC80/D200	TC90/D200
Part of complex
Hydraulic conductivity	m3/S	2.8*10-3	3.2*10-3	4.0*10-3	5.0*10-3
Peel resistance strength	KN/m	0.17
Volume wide	m	4
	m	70	60	50	40
Geonet
Structure	Three rib
The thickness	m	6.3	7.0	8.0	9.0
The density	g/cm2	20.94
Carbon black content	%	2
Tensile strength(The longitudinal)	KN/m	10.0	13.0	16.0	20.0
Hydraulic conductivity	m3/S
geotextile-Double sided200g/m2

Product features：high drainage and tensile strength. Reduce the probability of geotextiles being embedded in the mesh core and

maintain long-term stable drainage. Withstand high pressure load for a long time, corrosion resistance, acid and

alkali resistance, long service life.Convenient construction, shortening construction period and reducing cost.

Scope of application: It is mainly used and get good effect in drainage works such as railways, highways, tunnels, municipal works,

reservoirs, and slope protection.

Product implementation standard：CJ/T 452-2014 Geotechnical drainage network for landfill.

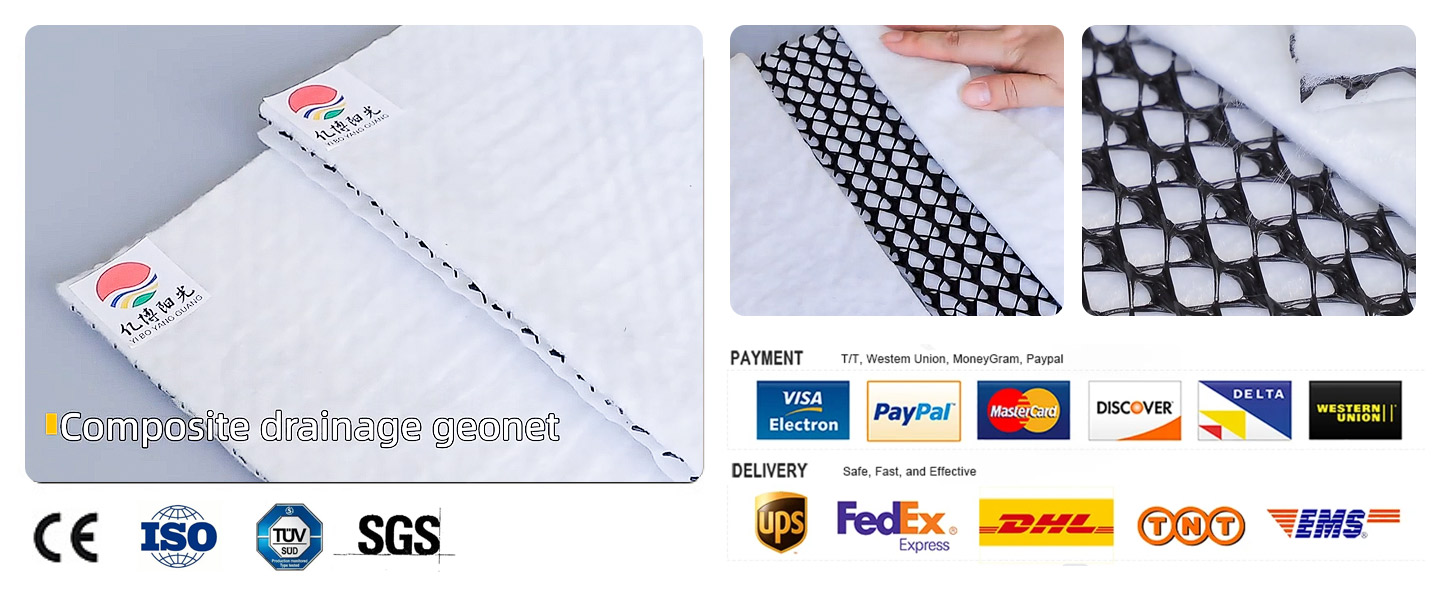

wholesale composite drainage net

3D composite drainage geonet is made of special geonet with double -side bonded geotextile.The combination of geotextile and geonet(drainage and protection) provides a cpmplete "reverse filtration-drainage-protection" effect.The special 3D structure of the mesh can with-stand high compressive loads during the entire use process,and can maintain a considerable thickness,provide good permeability.It can replace traditional sand and gravel layers,and is mainly used for drainage of landfills,roadbeds and inner walls of tunnels.

Composite drainage net production display：

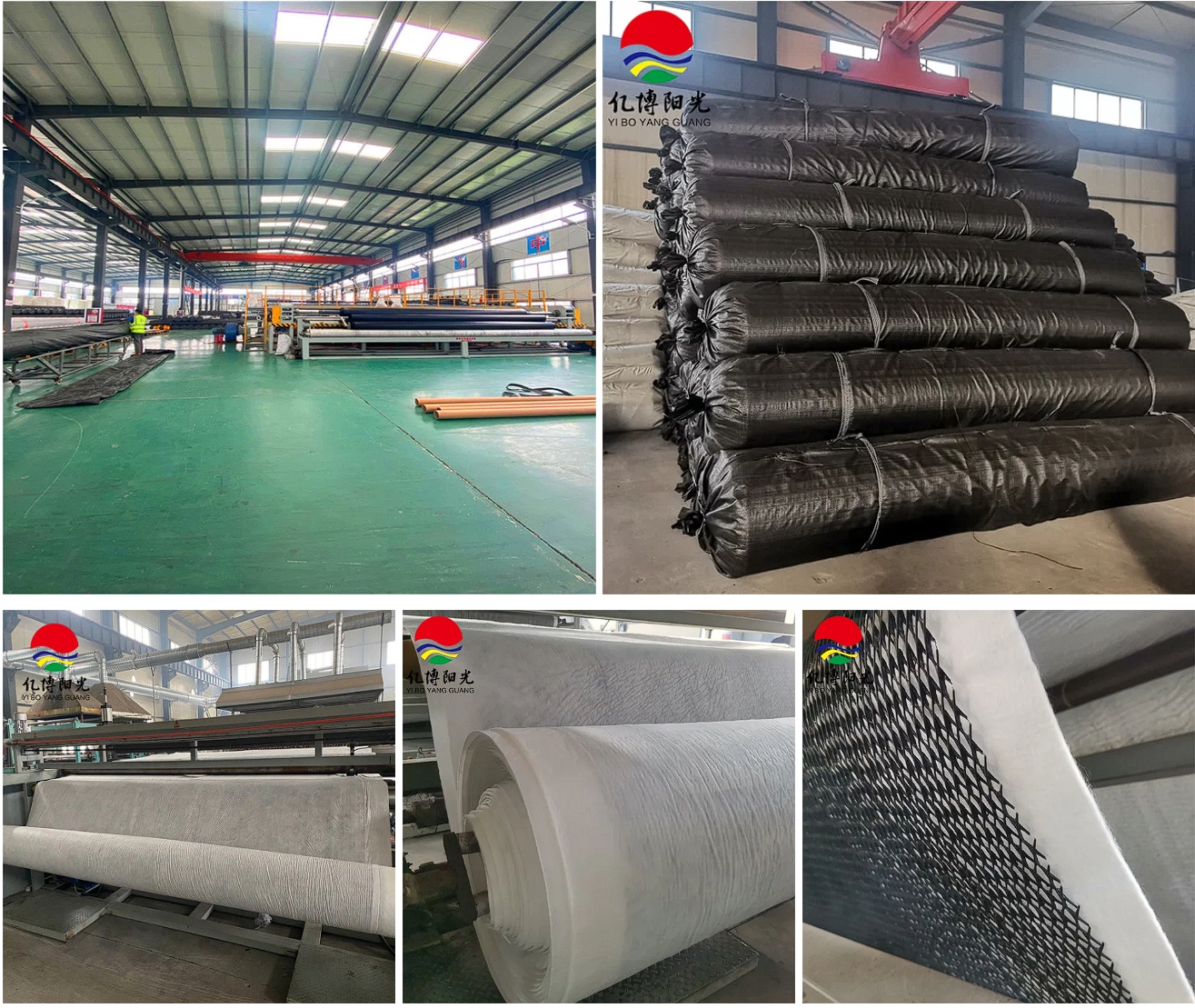

Composite drainage nets production line

Factory production information：

Column-point geomembranes manufacturer

Shandong Yibo Yangguang engineering materials co., Ltd is a collection of product research, development, production, installation and after-sales service into a comprehensive high-tech enterprises. The company mainly produces various specifications, geotextile, composite geomembrane, geogrid, HDPE geomembrane, bentonite waterproof blanket, prevent aging geotechnical woven bag and all kinds of geotechnical material such as dust-proof net, sun-shade net, woven bag. The company has a number of advanced production lines for the non-woven equipment is 6.6 meters, 6.6 meters composite membrane equipment, each a film equipment, blow molding machine, bentonite waterproof blanket equipment each a number, warp knitting machine, wire drawing machines. Company's products have been widely used in roads and railways, Bridges, tunnels, libraries, canal water conservancy anti-seepage, reclamation of levelling, landfill, mining area, and many other industries, salt industry, chemical industry, agriculture and fisheries. In each big in the field of engineering construction has stood the test of various engineering conditions, obtained satisfactory result of engineering, won the customer consistent high praise.

HDPE geomembrane production

Geomembrane certification

FAQ

1. who are we?
We are based in Shandong, China, start from 2016,sell to Domestic Market(90.00%),Southeast Asia(5.00%),South America(3.00%),Eastern Europe(00.00%),Africa(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Geomembrane,Geotextile,GCL Liner,3D Composite Drainage Geonet,Composite Geomembrane

4. why should you buy from us not from other suppliers?
shandong yibo yangguang engineering materials co., ltd is with more than 20 years in producing geomembrane, geotextile, compsite geomembrane, gcl l iner, etc. we sincerely hope cooperate with you and hope that you can visit our factory to talk more.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: null;
Language Spoken:English,Chinese

We welcome the opportunity to work with you on your next infrastructure project. Send us a message, and our team will get back to you promptly.
